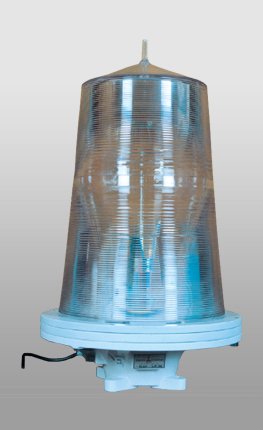

Marine Lantern (EL-300A)
The EL-300A Marine Lantern is rugged, compact, lightweight signal lantern for Fairway Buoys and Beacons.

Features
  • Can be used as medium range or long range shore beacons, fairway markings, ship wrecks markings and other marine obstructions.
  • Precision - moulded 300mm diameter polycarbonte fresnal lens with focus marks and integral bird spike.
  • Robust aluminium alloy body and lens ring
  • Lens ring hinged for easy service, having gaskets and spanner hinge fastener nuts.
  • Provision for external Photocell.
  • Standard pre-focused twin-filament or lamp changer can be used.
  • Large base body to accommodate any type of flasher and lamp changer presently manufactured and being used all over the world.
  • High optical efficiency makes EL-300A very suitable for solar power.
  • Can also be adapted as mains operated system where uniterrupted mains are available.
  • Light weight, sturdy and compact.
  • UV Stablised Lens available in clear, green, red or yellow colours.
  • External Photocell.
  • Choice of six Place lampchanger LC-6 or twinfilament lamps upto 100 Watts.
  • NPF 100 Electronic Flasher.


Lens Diameter 300 mm
Lens Material Polycarbonate Fresenal
Body Material Alluminium Alloy
Dimensions 510 mm x 760 mm
Focal Height 470 mm
Fixing 4 Holes 14 mm dia at 200 PCD
Weight 14 Kgs Appr.
